Axial Overhead Conveyors

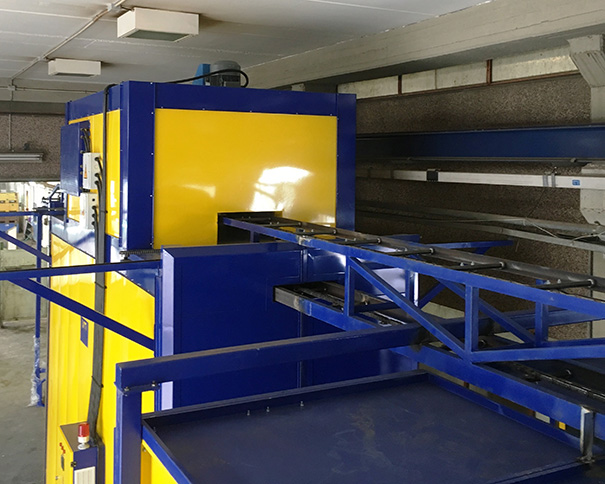

Axial type chain conveyor systems

Axial type conveyors are used in step-by-step powder coating or liquid painting lines.

The conveying rail is made of U rail and angle iron material in the form of welded construction. Conveyor chain is made of qualified steel material and hardened. Carrying shafts made of 6 corner iron material are connected to the chain lugs at certain intervals and at the end of each shaft there are ball bearings that provide frictionless movement in the U rail.

The drive unit consists of gearbox, belt-pulley mechanism and tension unit. The system operates with speed control.

Conveyor design depends on the maximum workpiece weight and the amount of load on the conveyor. The conveyor can be designed alone or in combination with a spray booth, curing oven, etc. in the project.
