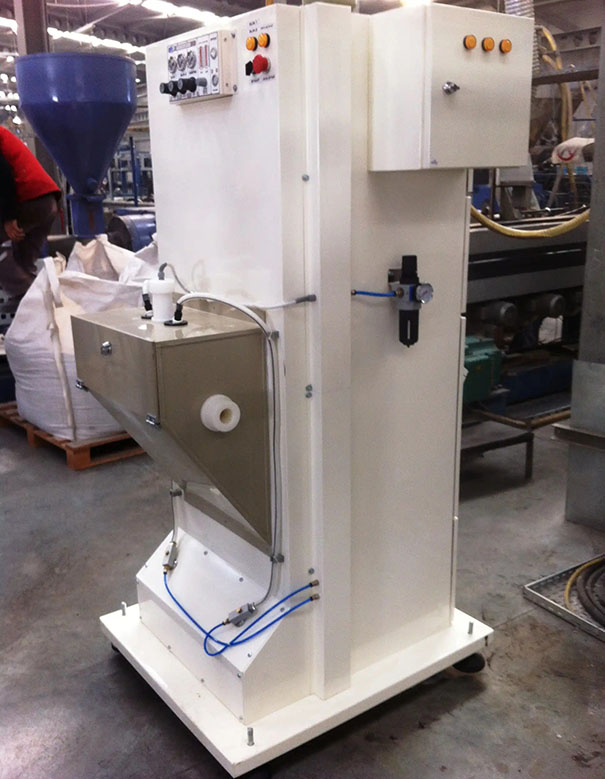

Cable talc powdering machine

Talc powdering machine for electrical cables

External Dimensions : L750 W1200 H1825mm
Input                           : 220V 50 Hz
Installed power          : 1 KW
Extraction fan            : 3.000 m³/h 0,75KW
Vibration motor          : 0,15KW 220V
Compressed air         : 6-10 bar
Air consumption        : 300 lt/min
Filtration                     : 320x300mm polyester filter
Filter cleaning            : Automatic
Powder recycling       : Vibrated sieve and injector

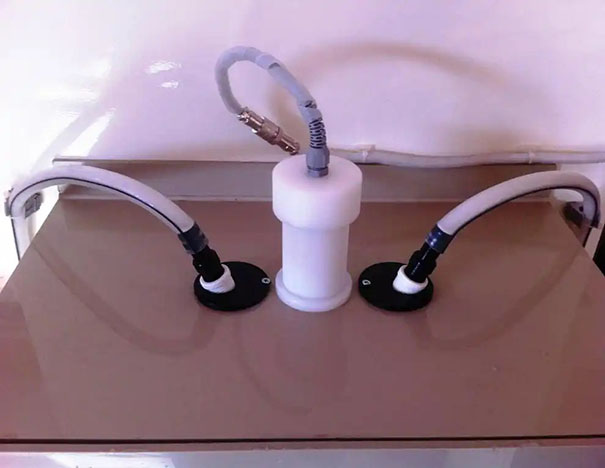

Coating method         : Electrostatic
Electrode qty             : 2 set

CABLE PASSAGE
Size                                    : 100 mm diameter
Height from ground            : 1.000 mm (avg.)
Cable insulation material    : PVC, PE, XLPE
Cable size to be powdered: 5–70 mm

HIGH VOLTAGE UNIT
Input voltage       : 14V 16kHZ
Output voltage    : 100 kV
Max. current        : 120 µa
Polarization         : Negative

Cable powder coating machine is CE certificated and conforms to the European Norms.
