Pickling Cabinet For Cleaning INOX Parts

Pickling cabinet for cleaning INOX parts

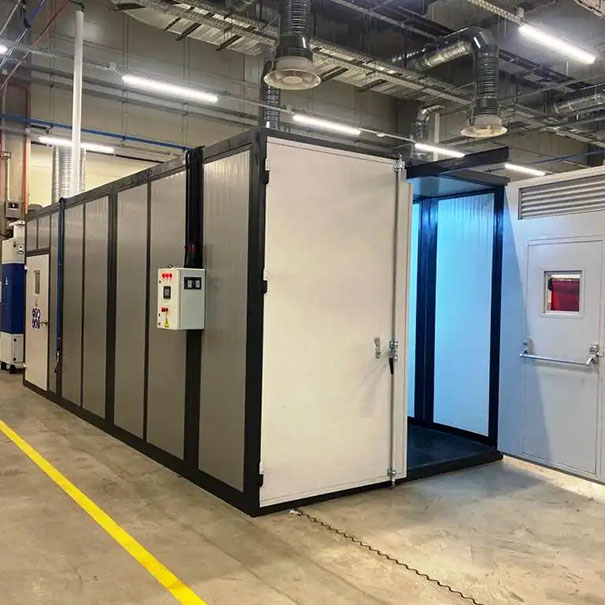

INTERNAL DIMENSIONS
Length : 5.000 mm
Width   : 2.800 mm
Height  : 2.900 mm

Material : Insulated sandwich panels, fire protected
Basement : 150mm
Illumination : 2x36W Exproof Zone-2
Entry door : Insulated sheet metal door
Emergency door : 1 set
Working temperature: RT

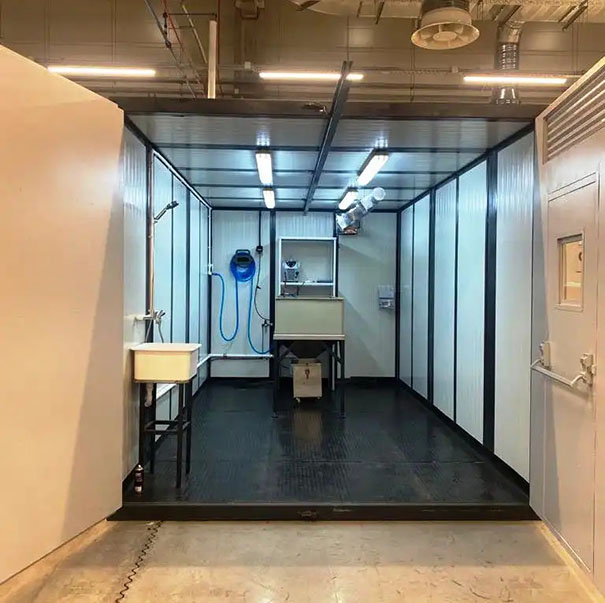

WORKBENCH
Length : 1.800 mm
Width : 800 mm
Height : 900 mm

Ventilation : AISI304 extraction fan, circular air duct
Material : PP material body, removable splash covers
Grid : AISI304 stainless steel
Sink : PP material
Accessories : Hose reel, wardrobe
Droplet separator

WASTE WATER ROOM
Length : 2.000 mm
Width : 2.800 mm
Height : 2.900 mm
Basement : 150mm
Illumination : 2x36W Exproof Zone-2
Entry door : Insulated sheet metal door
Working temperature: RT
Emergencydoor : 1 set
Waste water tank : 1000 lt HDPE100

WASTE WATER DISCHARGING SYSTEM
Pump : Diaphragm pump
Piping system from workbench and sink to the waste water tank
Components used in the piping system resistant to the chemical solution used at pickling application.

The pickling cabinet is CE certified and complies with European standards.
