Transfer type conveyor systems

Transfer type conveyor systems

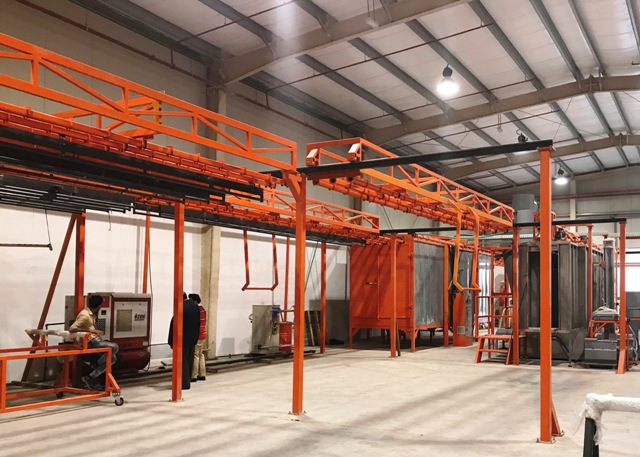

Transfer type conveyors are systems designed according to the project from the combination of conveyor rails. The transfer type painting system is designed by our project department according to the existing workshop dimensions based on the product to be painted and daily quantities.

In principle, the transfer type conveyor project is designed by considering the progressive movement of the workpiece while the workpieces to be painted pass from one process to another process. The workpieces are usually suspended on moving bars in this conveyor system and move towards the next process by manual pull-push or automatic bar movement.

Transfer type conveyors are generally preferred to reduce operational costs and speed up the plant by semi-automatizing manual dyeing plants.

The progression of workpieces can be automated at any point in the painting system, making it a much lower cost power&free conveyor system.

The C3 clearance bearings used in the hanger trolleys ensure smooth movement inside the ovens at high temperature.

Coating plants with this conveyor system are typically used for powder coating of aluminum profiles, but can also be used for coating systems that require different specifications for powder coating, liquid coating or any other type of product.

In the painting system, automatic coating can be achieved by adding a conveyor system above the powder or paint booth and adding a reciprocator and automatic gun to the coating booth.

The advantage of transfer conveyors is that a painting plant can be installed in workshops with limited or complex space. The transfer system can provide manual or fully automatic painting according to the project and workpiece quantities.
