VM Vertical Reciprocator

VM Powder coating reciprocator

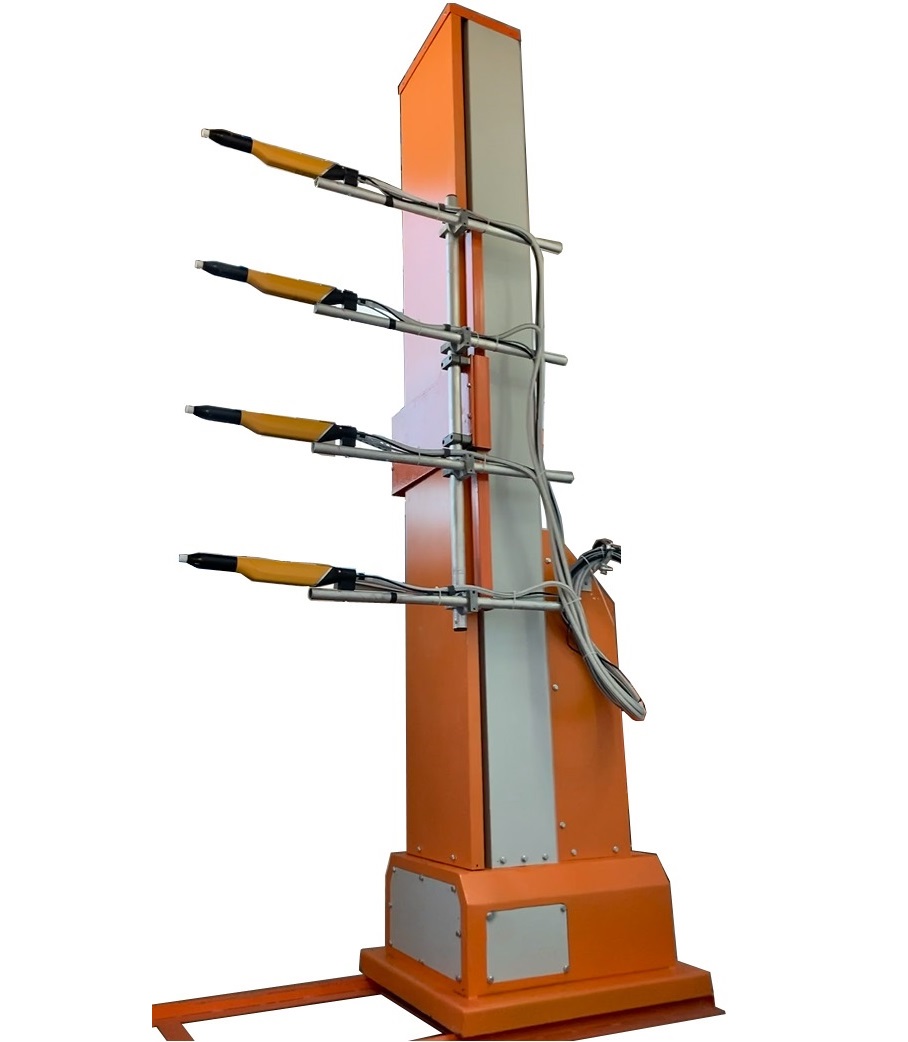

The powder coating reciprocator is designed for automatic painting applications. It moves the spray guns up and down in a single axis, ensuring perfect coating of the workpieces passing in front of it.
The vertical guide moves in a single axis along the column, ensuring maximum performance to withstand continuous load in daily working conditions.

The brake drive motor and gearbox have been selected to ensure the long life of the piston gun and its performance under severe working environment conditions. The mechanical system design with chain or belt ensures quiet and vibration-free vertical movement.

Easy adjustment of stroke and speed ensures perfect coverage.

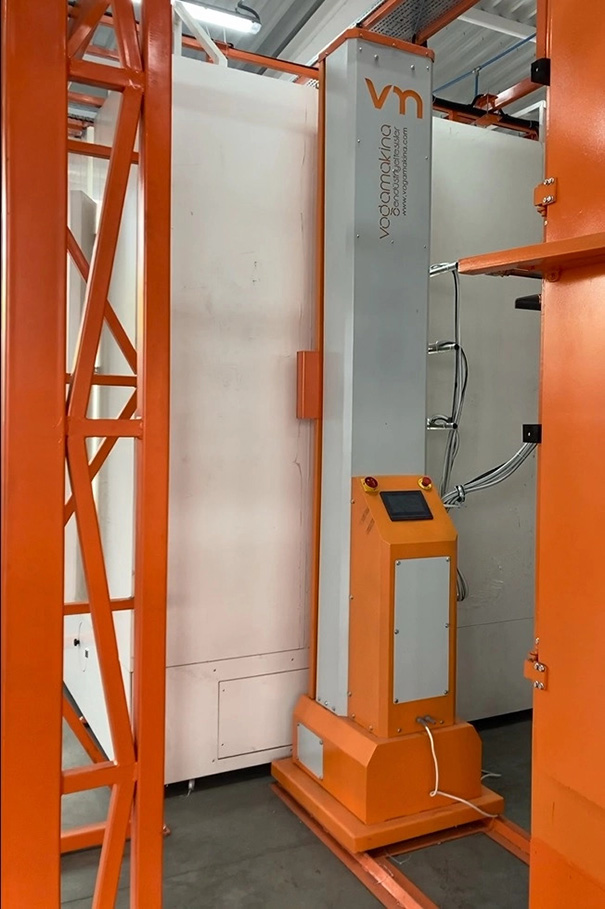

RECIPROCATOR CONTROL UNIT

• Remote control panel 7" 65K color hand touch LCD screen,
• Two reciprocators can be controlled independently from the same display,
• Spray guns connected to the reciprocator can be started and terminated from the touch panel,
• Vertical speed and stroke settings can be easily adjusted on the LCD display,
• Running time and speeds are displayed on the screen during operation,
• In the event of a fault, the cause of the fault can be seen on the error page, this feature provides ease of use and adjustment,
• Reciprocator settings are memorized for 10 different products
• PLC interface can be customized in any language upon customer request
